Note: This product is discounted because of being part of Apos' Inventory Clearance drive and is final sale.

The Matrix X-Sabre Pro MQA DAC was created by Matrix to be a MQA full decoder DAC that can fully decode the original MQA files without any assistance from the third party player software (MQA Core Decode). This lets you experience the music details as the artists' recording room.

The X-Sabre Pro MQA DAC uses the ES9038PRO advanced 8-channel D/A chip. Its inner DSP unit and artificial circuit have high performance and better user experience. The new generation XMOS XU216 USB asynchronous transfer interface and new AK4118 S/PDIF receiver chip, with powerful computing performance and multi-channel processing performance, make X-Sabre Pro MQA has excellent digital audio conversion capability.

In addition optical, coaxial, AES/EBU, and USB ports, the X-Sabre Pro MQA DAC also has a IIS LVDS input via a HDMI connector to differential transmit IIS signal. It has a clock configuration circuit unit, which can choose to use ES9038PRO synchronous clock source or external ultra-low phase noise clock source. Finally, it has a built-in three hi-res audio dedicated Crystek ultra-low phase noise oscillators that result in a phase noise as low as -169 dBc/Hz.

Specs:

AES Input

PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSD DSD64 (DoP/dCS)

Coaxial Input

PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSD DSD64 (DoP/dCS)

Optical Input

PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSD DSD64 (DoP/dCS)

IIS（PS AUDIO Standard) Input

PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
DSD DSD64/128/256 (DoP/dCS) DSD64/128/256/512/1024(Native DSD)

USB Input

PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
MQA 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz MQA Studio or MQA stream
DSD DSD64/128/256 (DoP/dCS) DSD64/128/256/512 (ASIO Native)

System Support

Windows7/8/8.1/10 systems need to install the supplied drivers.
Mac OS X10.6.4 and above version without installing drivers.
Most Android devices can be connected via OTG cable.
The iOS devices can be used via the Apple Camera Connection Kit.

XLR Output

SNR : > -134dB 20Hz-20kHz A-Weighting
THD+N : <0.00012% at 1kHz A-Weighting, <0.00015% at 20Hz-20kHz A-Weighting
Frequency Response : 20Hz-20kHz (+0.01dB/-0.02dB)
Crosstalk : > -151dB @1kHz
4.5Vrms Fixed at 0 dBFS DAC MODE, 0-4.5Vrms Adjustable at 0 dBFS PRE MODE

RCA Output

SNR : >-129dB 20Hz-20kHz A-Weighting
THD+N : <0.00018% at 1kHz A-Weighting, <0.00030% at 20Hz-20kHz A-Weighting
Frequency Response : 20Hz-20kHz (+0.01dB/-0.02dB)
Crosstalk : >-143dB @1kHz
2.25Vrms Fixed at 0 dBFS DAC MODE, 0-2.25Vrms Adjustable at 0 dBFS PRE MODE

Power Voltage : 230V position is fit for AC220V-240V 50/60Hz, 115V position is fit for AC100V-120V 50/60Hz
Power Consumption : <10W
Size: 300×218×45mm (l×w×h, including the protruding part）
Weight : 3.7KG
Accessory

RM2 Remote Control x 1
Power Cord x 1
USB Cable x 1

DAC (Digital-to-Analog Converter)

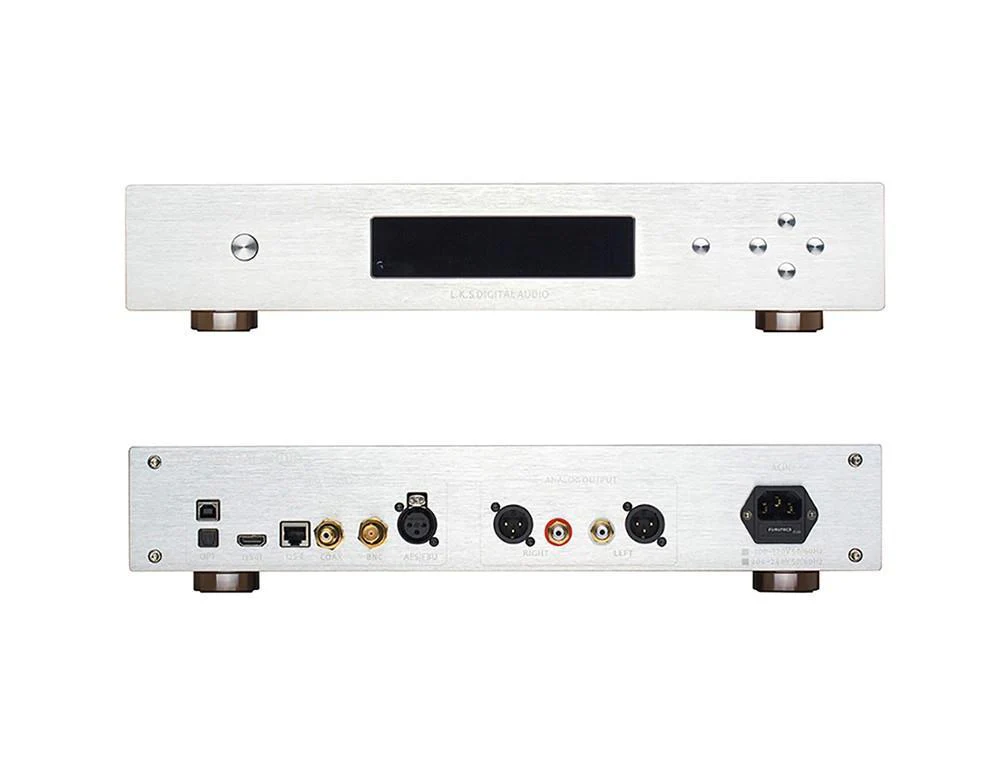

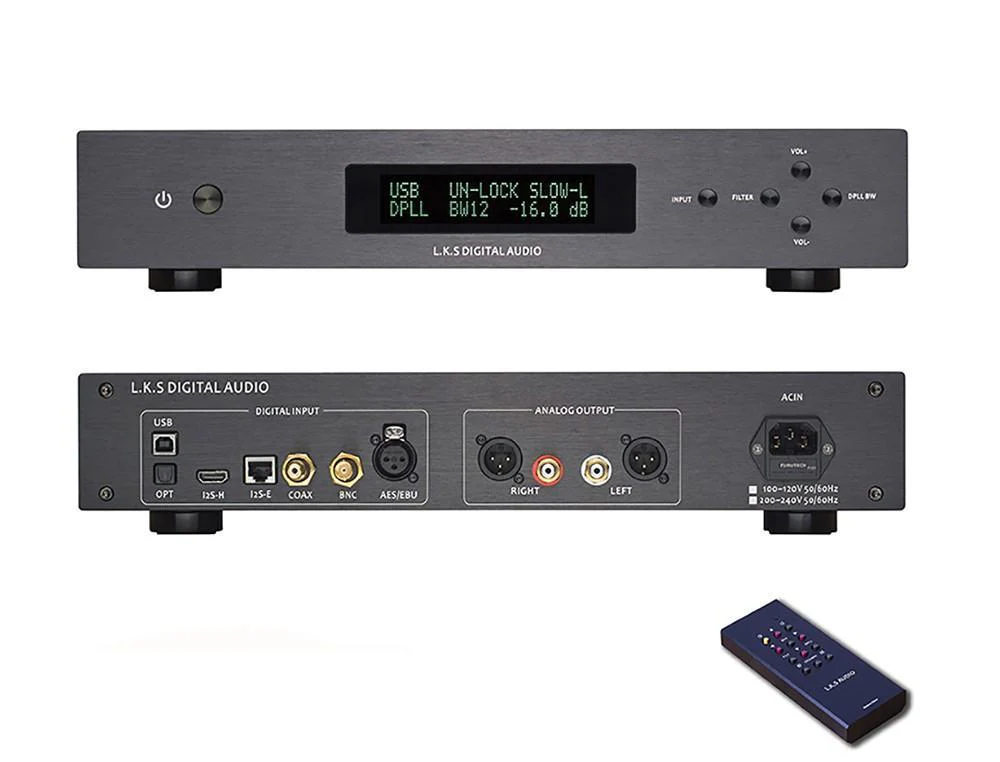

Musetec Audio (LKS Audio) MH-DA004 Dual ES9038pro DAC (Digital-to-Analog Converter)

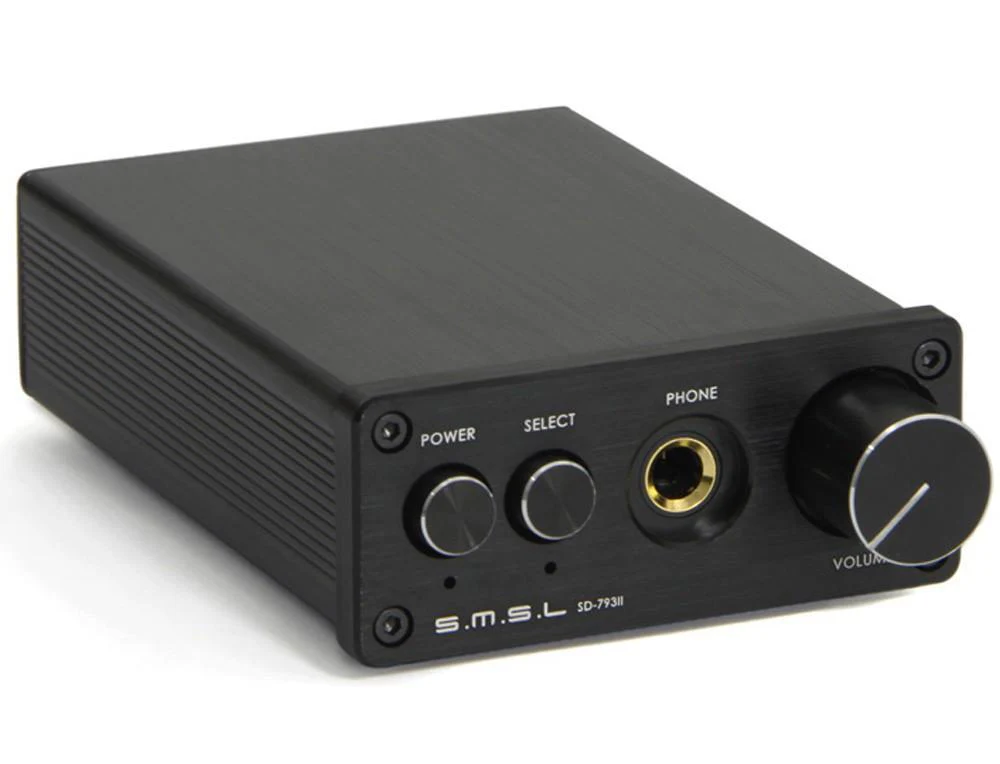

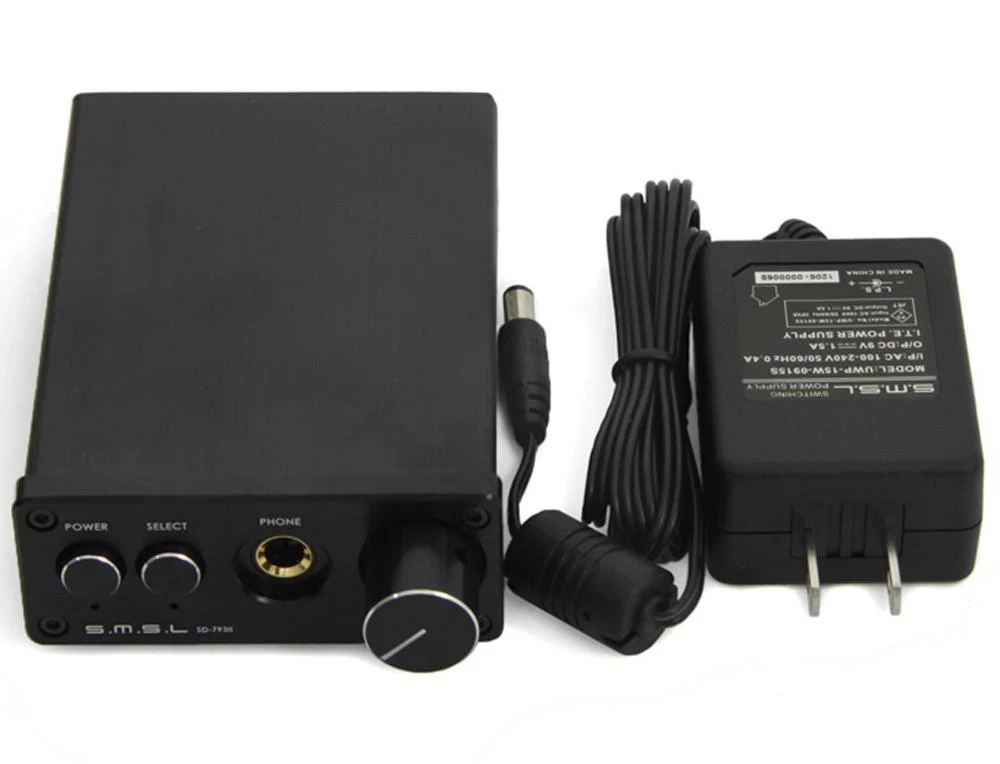

SMSL SD-793II DAC/Amp

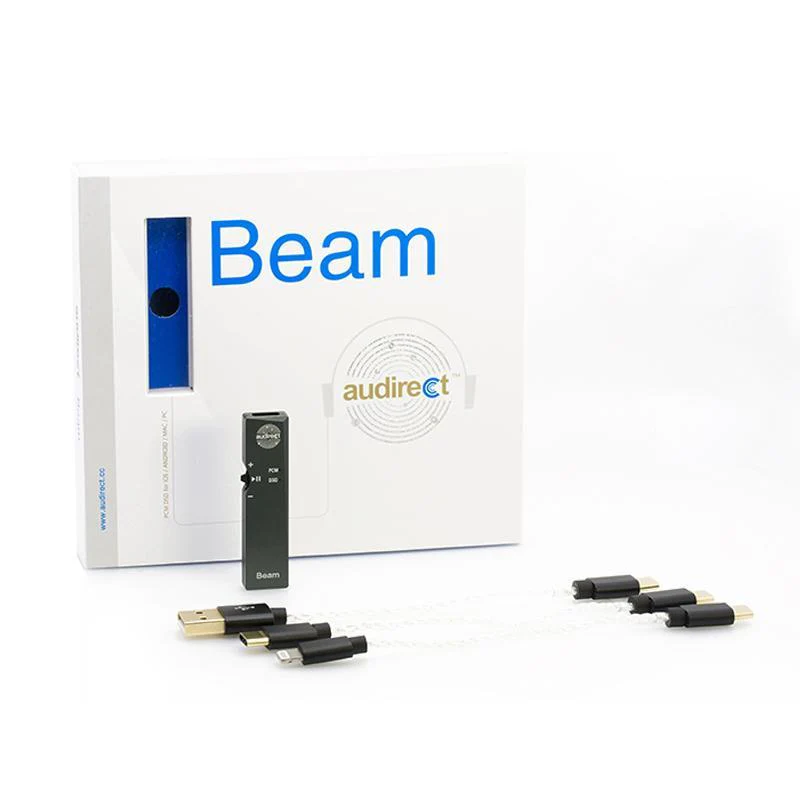

Audirect Beam Portable DAC/Amp

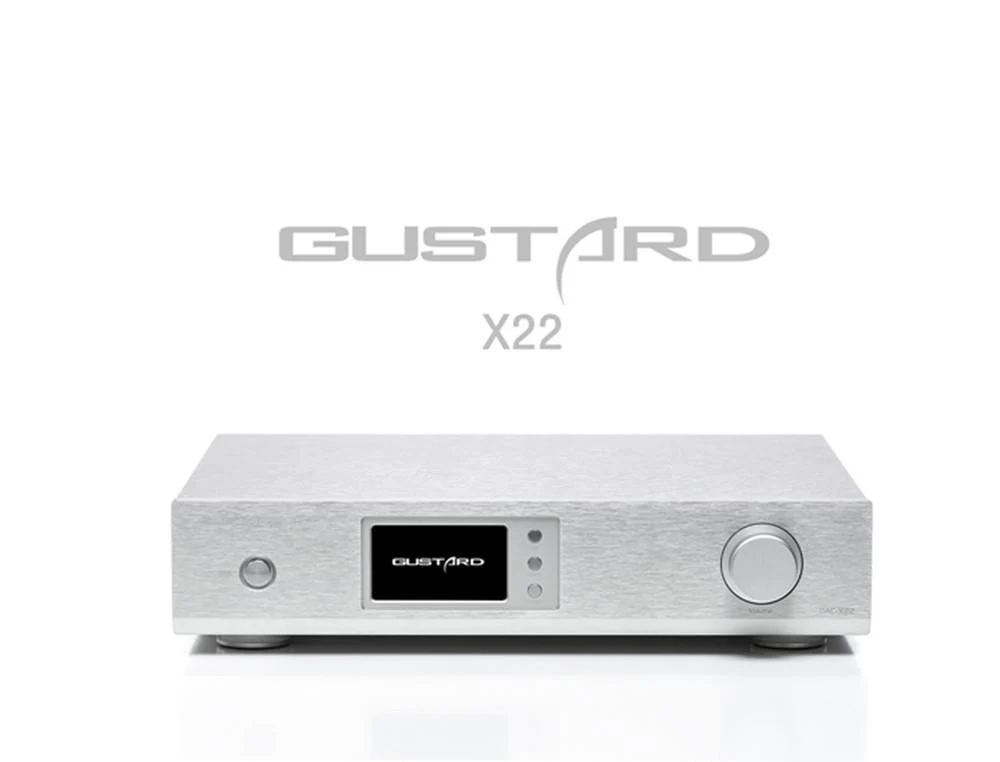

Gustard DAC-X22

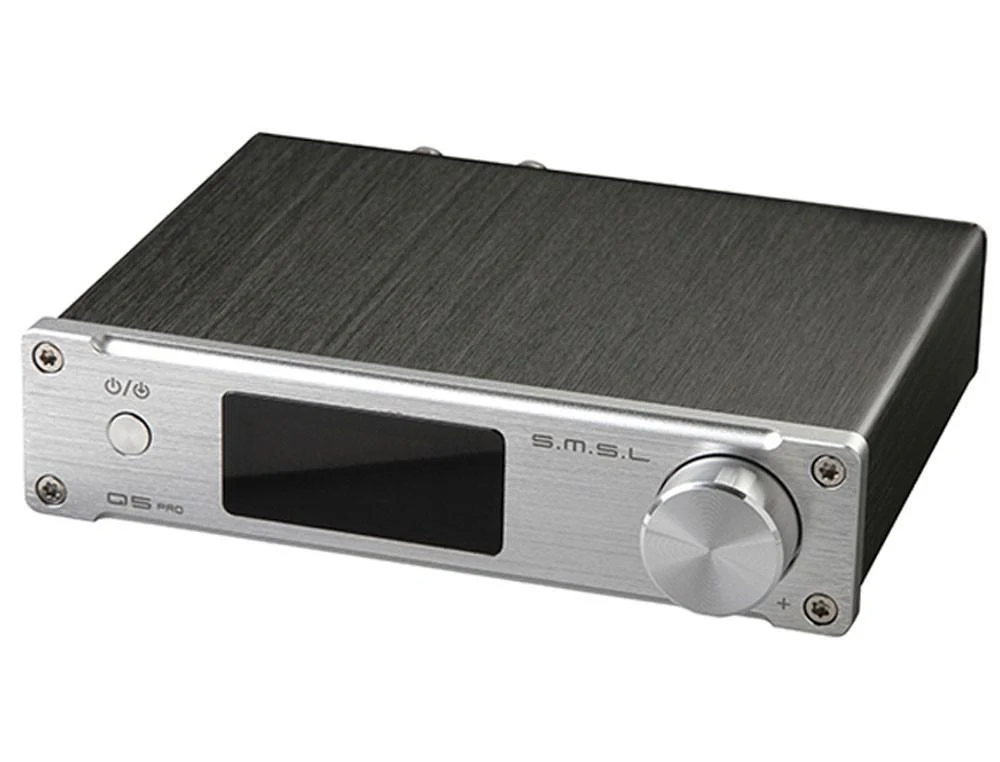

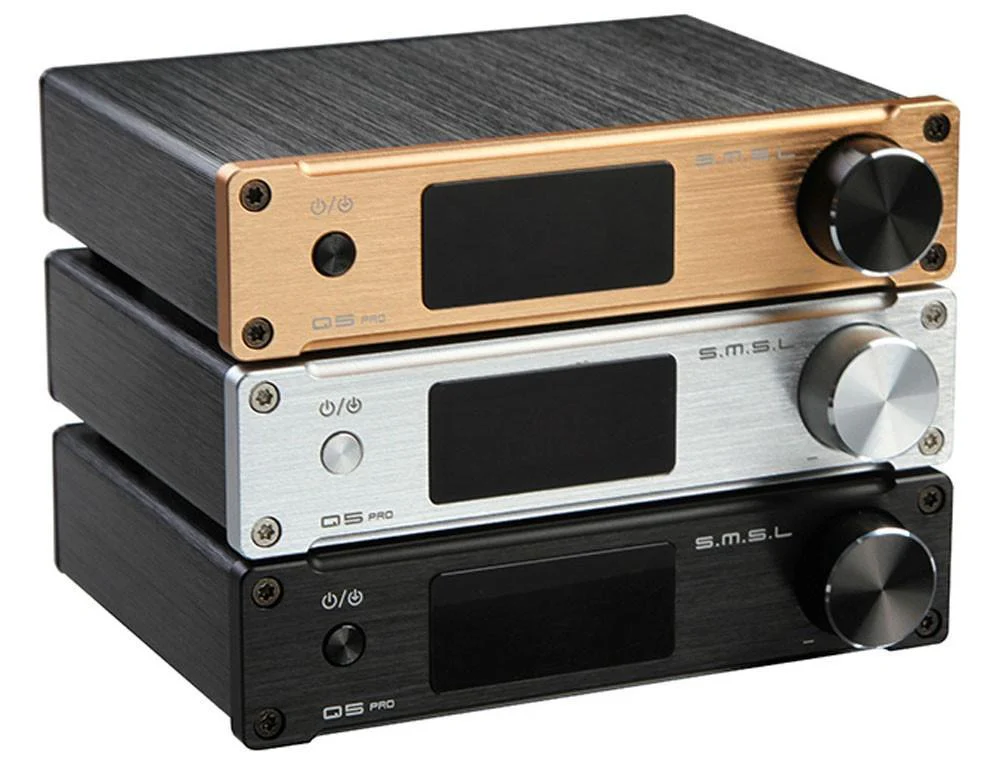

SMSL Q5 Pro DAC/Amp

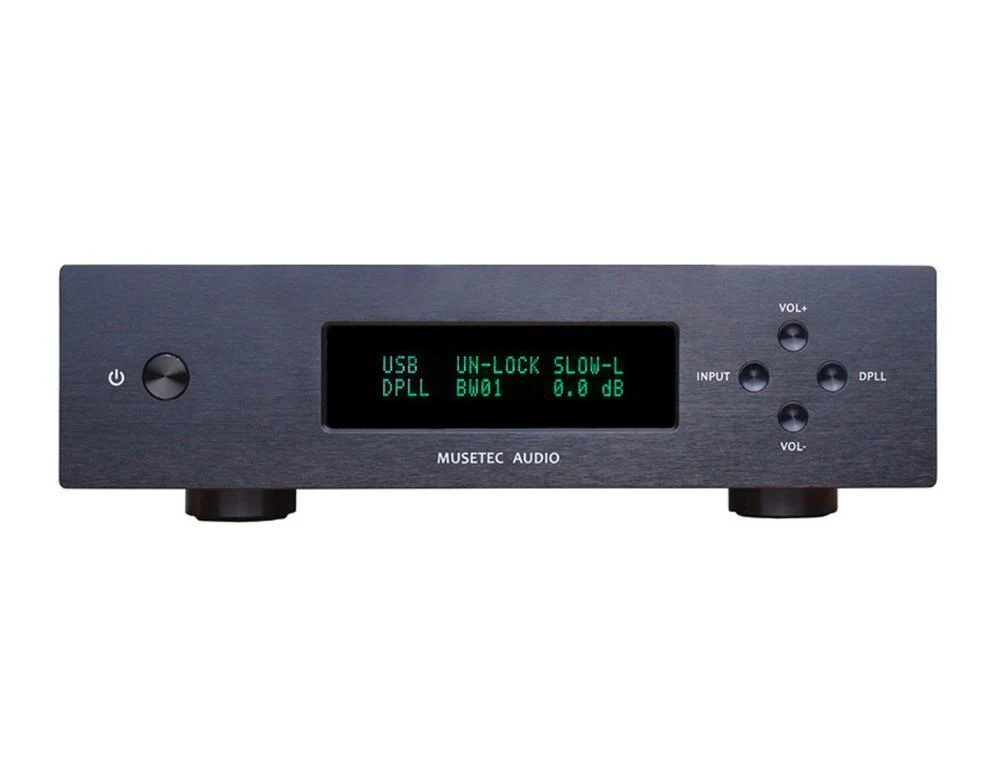

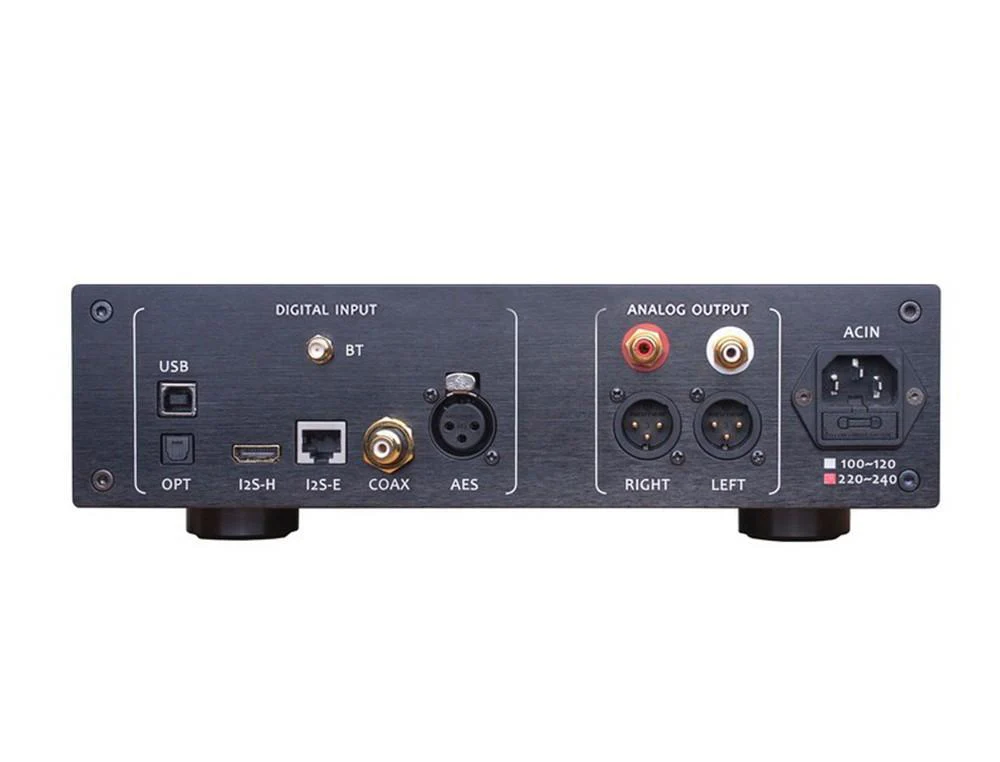

Musetec Audio (LKS Audio) MH-DA004 Mini DAC (Digital-to-Analog Converter)

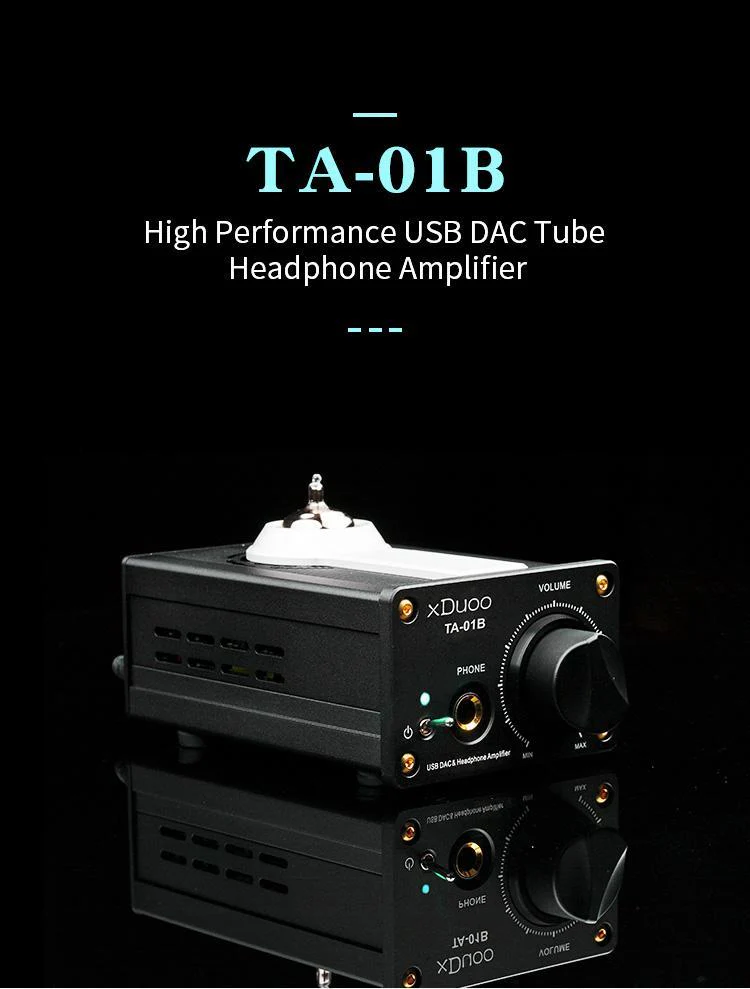

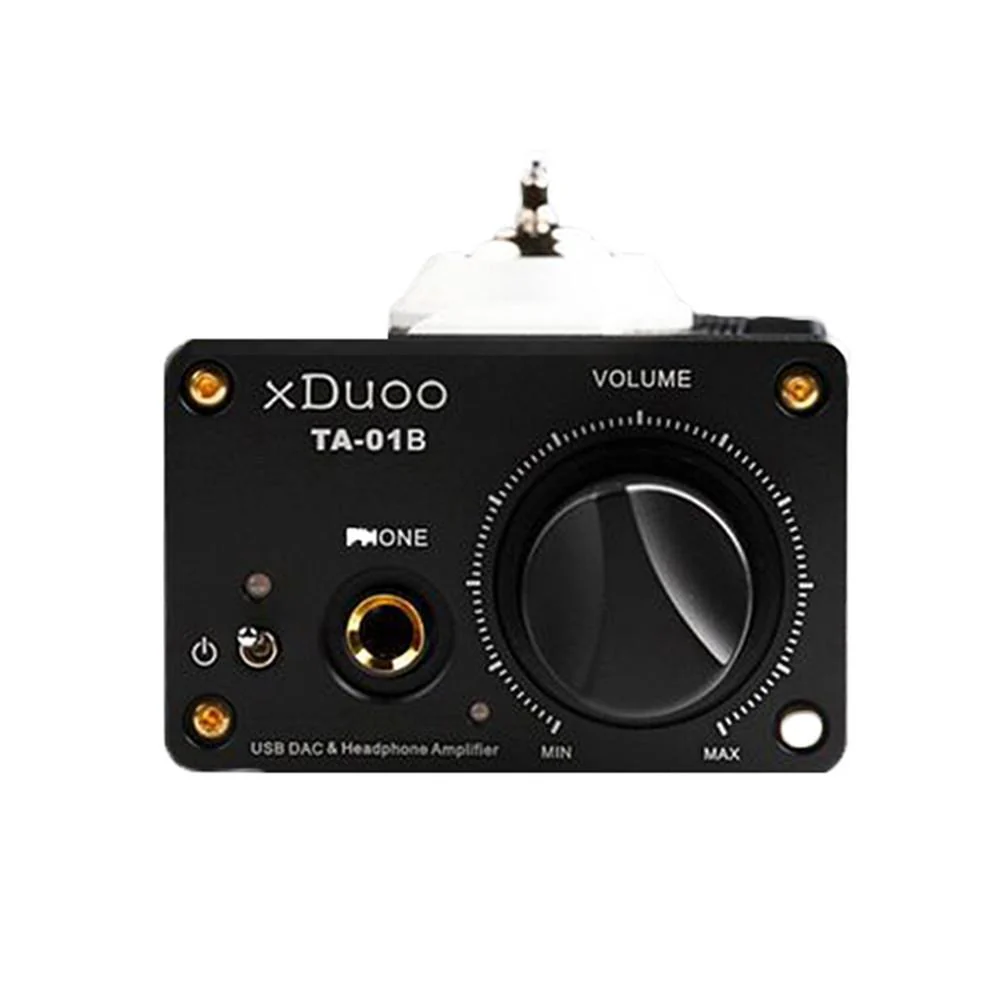

xDuoo TA-01B DAC/Amp

Matrix X-Sabre Pro MQA DAC (Digital-to-Analog Converter)

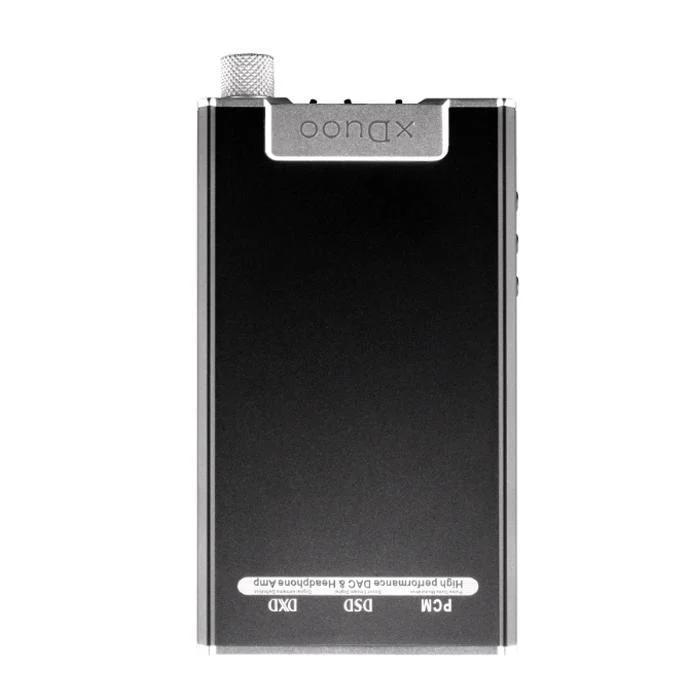

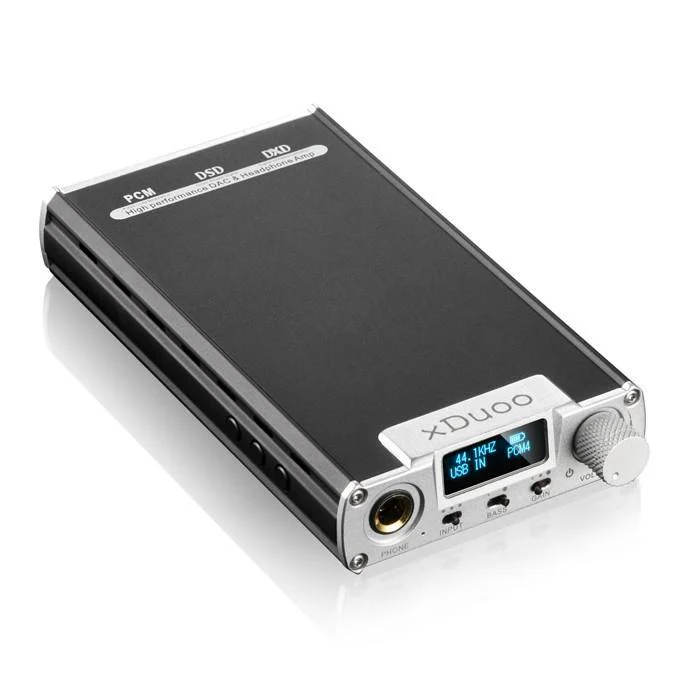

xDuoo XD-05 DAC/Amp

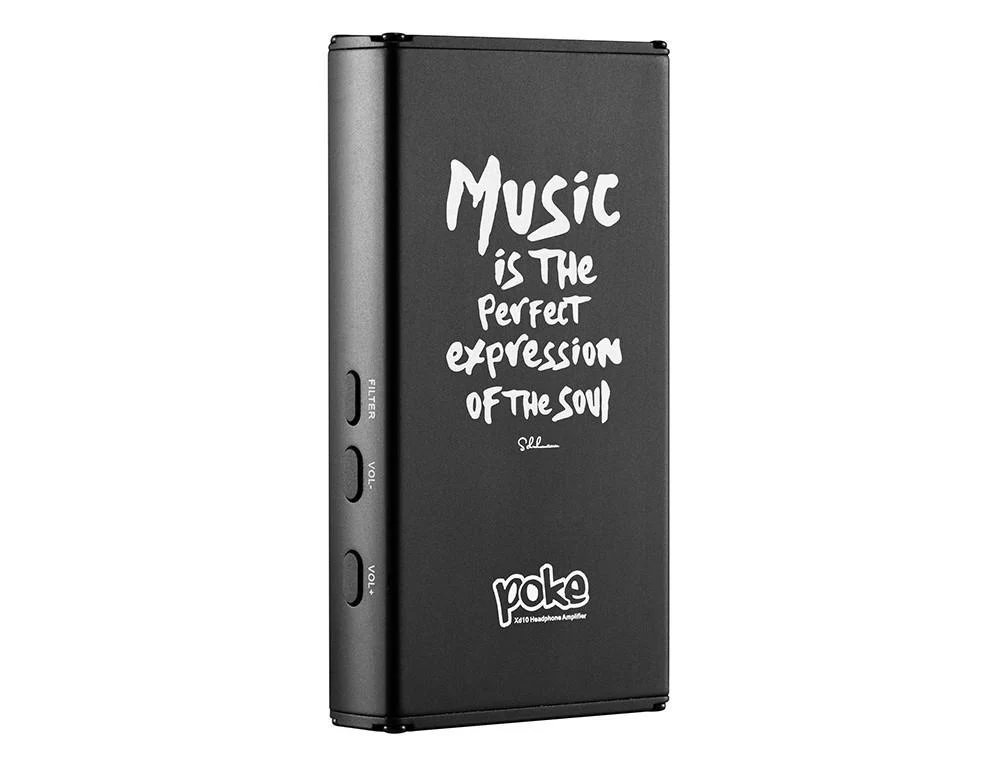

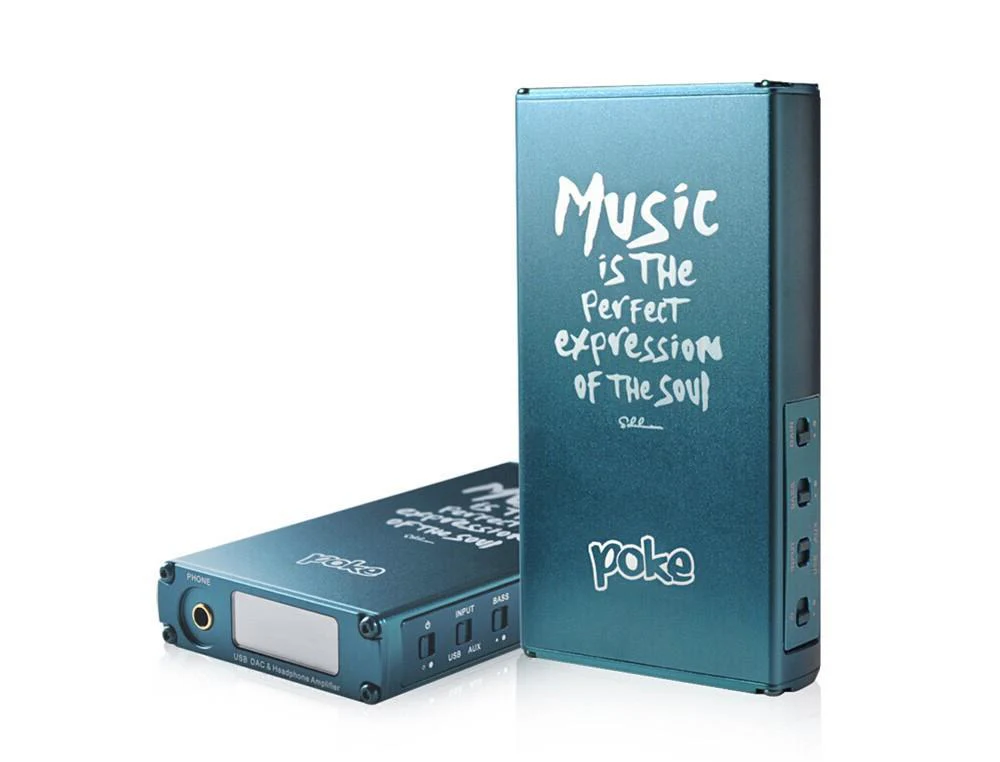

xDuoo XD-10 DAC/Amp

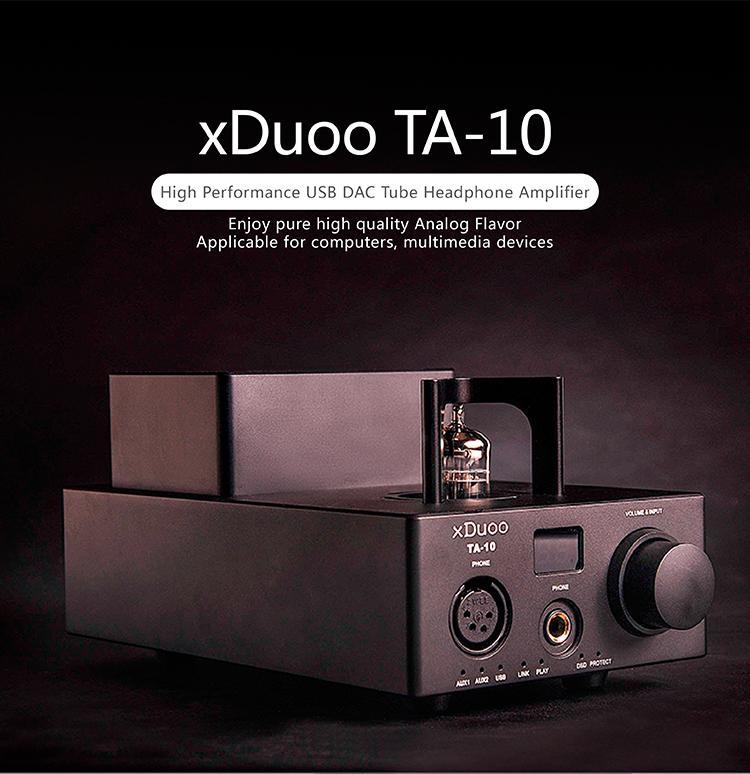

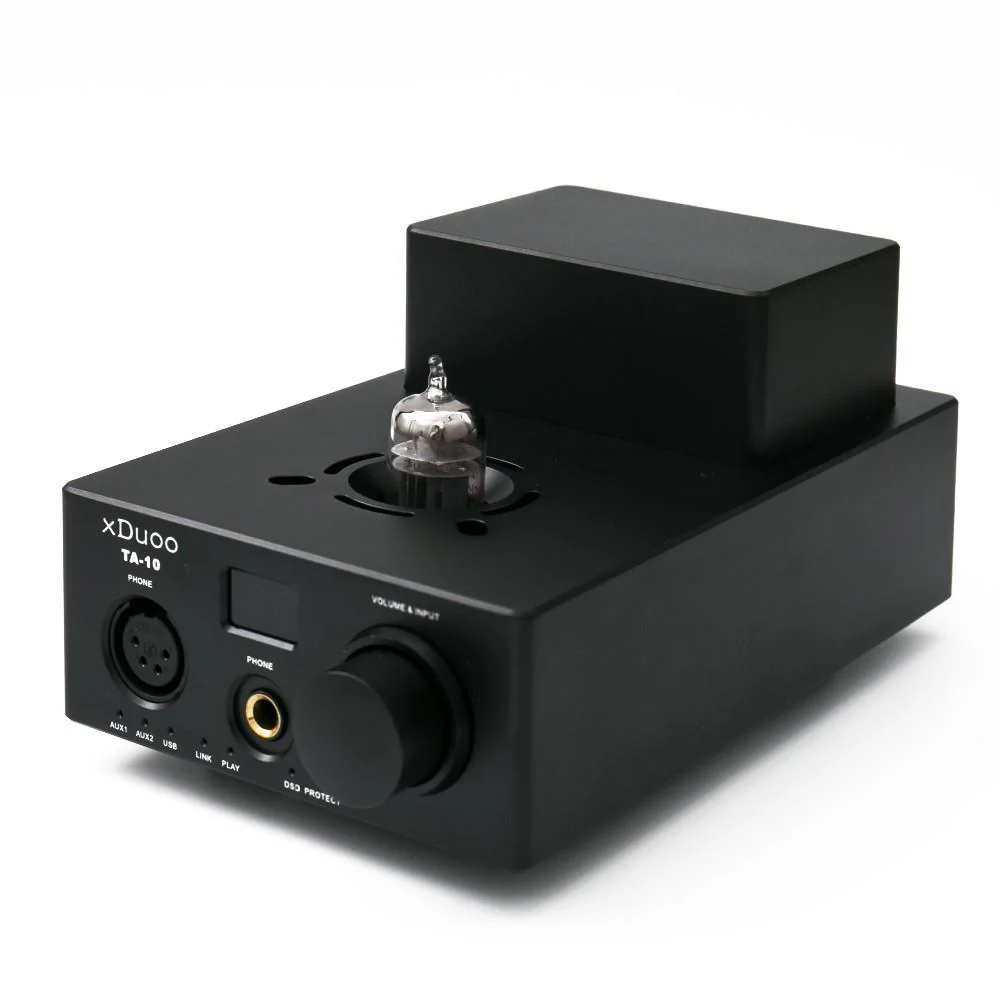

xDuoo TA-10 Tube DAC/Amp

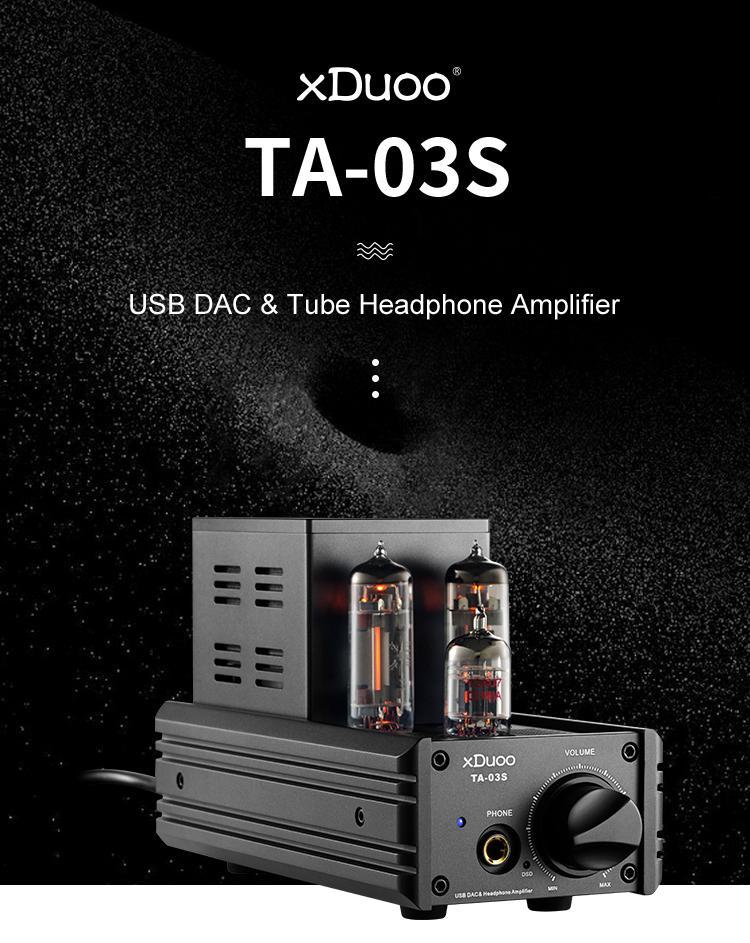

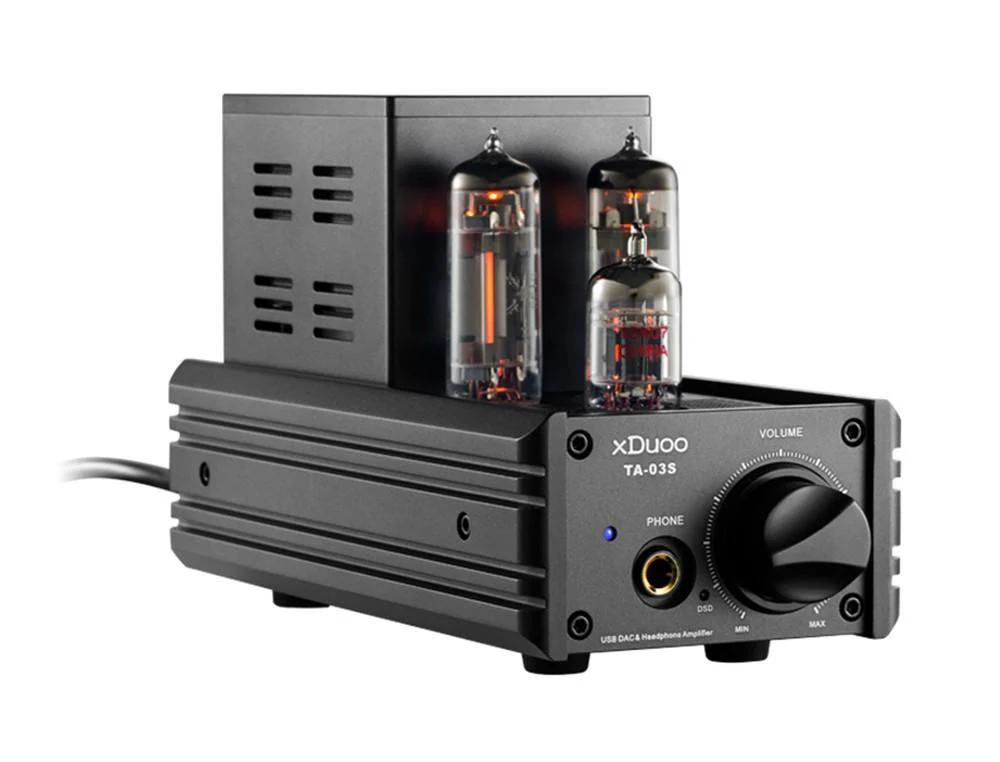

xDuoo TA-03S Tube DAC/Amp
