Matrix X-Sabre Pro MQA DAC (Digital-to-Analog Converter)

Product image 1
1 / 12
+7

Matrix X-Sabre Pro MQA DAC (Digital-to-Analog Converter)

Note: This product is discounted because of being part of Apos' Inventory Clearance drive and is final sale.

The Matrix X-Sabre Pro MQA DAC was created by Matrix to be a MQA full decoder DAC that can fully decode the original MQA files without any assistance from the third party player software (MQA Core Decode). This lets you experience the music details as the artists' recording room.

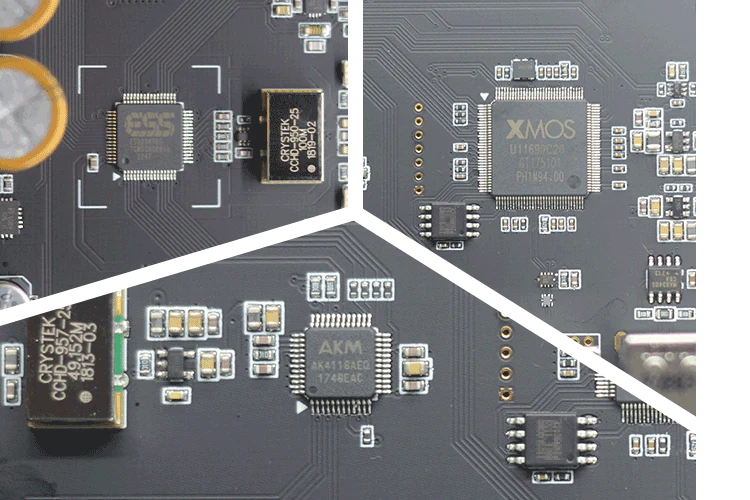

The X-Sabre Pro MQA DAC uses the ES9038PRO advanced 8-channel D/A chip. Its inner DSP unit and artificial circuit have high performance and better user experience. The new generation XMOS XU216 USB asynchronous transfer interface and new AK4118 S/PDIF receiver chip, with powerful computing performance and multi-channel processing performance, make X-Sabre Pro MQA has excellent digital audio conversion capability.

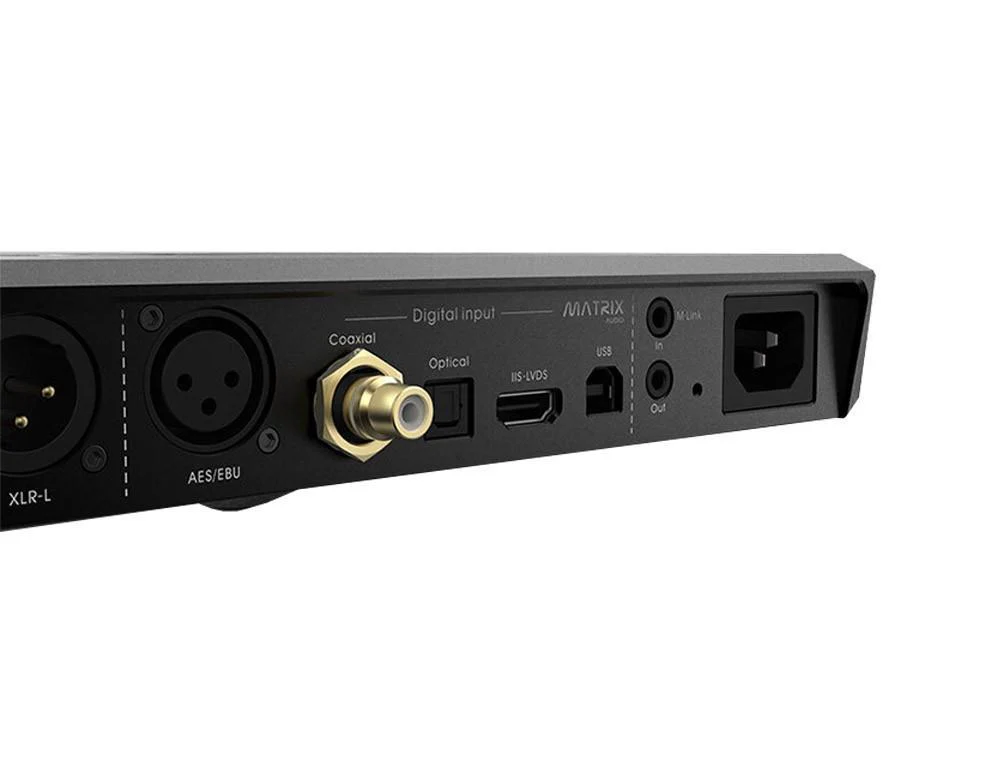

In addition optical, coaxial, AES/EBU, and USB ports, the X-Sabre Pro MQA DAC also has a IIS LVDS input via a HDMI connector to differential transmit IIS signal. It has a clock configuration circuit unit, which can choose to use ES9038PRO synchronous clock source or external ultra-low phase noise clock source. Finally, it has a built-in three hi-res audio dedicated Crystek ultra-low phase noise oscillators that result in a phase noise as low as -169 dBc/Hz.

Specs:

  • AES Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD DSD64 (DoP/dCS)
  • Coaxial Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD DSD64 (DoP/dCS)
  • Optical Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD DSD64 (DoP/dCS)
  • IISPS AUDIO Standard) Input
    • PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
    • DSD DSD64/128/256 (DoP/dCS) DSD64/128/256/512/1024(Native DSD)
  • USB Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
    • MQA 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz MQA Studio or MQA stream
    • DSD DSD64/128/256 (DoP/dCS) DSD64/128/256/512 (ASIO Native)
  • System Support
    • Windows7/8/8.1/10 systems need to install the supplied drivers.
    • Mac OS X10.6.4 and above version without installing drivers.
    • Most Android devices can be connected via OTG cable.
    • The iOS devices can be used via the Apple Camera Connection Kit.
  • XLR Output
    • SNR : > -134dB 20Hz-20kHz A-Weighting
    • THD+N : <0.00012% at 1kHz A-Weighting, <0.00015% at 20Hz-20kHz A-Weighting
    • Frequency Response : 20Hz-20kHz (+0.01dB/-0.02dB)
    • Crosstalk : > -151dB @1kHz
    •  4.5Vrms Fixed at 0 dBFS DAC MODE, 0-4.5Vrms Adjustable at 0 dBFS PRE MODE
  • RCA Output
    • SNR : >-129dB 20Hz-20kHz A-Weighting
    • THD+N : <0.00018% at 1kHz A-Weighting, <0.00030% at 20Hz-20kHz A-Weighting
    • Frequency Response : 20Hz-20kHz (+0.01dB/-0.02dB)
    • Crosstalk : >-143dB @1kHz
    • 2.25Vrms Fixed at 0 dBFS DAC MODE, 0-2.25Vrms Adjustable at 0 dBFS PRE MODE
  • Power Voltage : 230V position is fit for AC220V-240V 50/60Hz, 115V position is fit for AC100V-120V 50/60Hz
  • Power Consumption : <10W
  • Size: 300×218×45mm (l×w×h, including the protruding part）
  • Weight : 3.7KG
  • Accessory
    • RM2 Remote Control x 1
    • Power Cord x 1
    • USB Cable x 1


Note: This product is discounted because of being part of Apos' Inventory Clearance drive and is final sale.

The Matrix X-Sabre Pro MQA DAC was created by Matrix to be a MQA full decoder DAC that can fully decode the original MQA files without any assistance from the third party player software (MQA Core Decode). This lets you experience the music details as the artists' recording room.


The X-Sabre Pro MQA DAC uses the ES9038PRO advanced 8-channel D/A chip. Its inner DSP unit and artificial circuit have high performance and better user experience. The new generation XMOS XU216 USB asynchronous transfer interface and new AK4118 S/PDIF receiver chip, with powerful computing performance and multi-channel processing performance, make X-Sabre Pro MQA has excellent digital audio conversion capability.

In addition optical, coaxial, AES/EBU, and USB ports, the X-Sabre Pro MQA DAC also has a IIS LVDS input via a HDMI connector to differential transmit IIS signal. It has a clock configuration circuit unit, which can choose to use ES9038PRO synchronous clock source or external ultra-low phase noise clock source. Finally, it has a built-in three hi-res audio dedicated Crystek ultra-low phase noise oscillators that result in a phase noise as low as -169 dBc/Hz.

Specs:

  • AES Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD DSD64 (DoP/dCS)
  • Coaxial Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD DSD64 (DoP/dCS)
  • Optical Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD DSD64 (DoP/dCS)
  • IISPS AUDIO Standard) Input
    • PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
    • DSD DSD64/128/256 (DoP/dCS) DSD64/128/256/512/1024(Native DSD)
  • USB Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
    • MQA 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz MQA Studio or MQA stream
    • DSD DSD64/128/256 (DoP/dCS) DSD64/128/256/512 (ASIO Native)
  • System Support
    • Windows7/8/8.1/10 systems need to install the supplied drivers.
    • Mac OS X10.6.4 and above version without installing drivers.
    • Most Android devices can be connected via OTG cable.
    • The iOS devices can be used via the Apple Camera Connection Kit.
  • XLR Output
    • SNR : > -134dB 20Hz-20kHz A-Weighting
    • THD+N : <0.00012% at 1kHz A-Weighting, <0.00015% at 20Hz-20kHz A-Weighting
    • Frequency Response : 20Hz-20kHz (+0.01dB/-0.02dB)
    • Crosstalk : > -151dB @1kHz
    •  4.5Vrms Fixed at 0 dBFS DAC MODE, 0-4.5Vrms Adjustable at 0 dBFS PRE MODE
  • RCA Output
    • SNR : >-129dB 20Hz-20kHz A-Weighting
    • THD+N : <0.00018% at 1kHz A-Weighting, <0.00030% at 20Hz-20kHz A-Weighting
    • Frequency Response : 20Hz-20kHz (+0.01dB/-0.02dB)
    • Crosstalk : >-143dB @1kHz
    • 2.25Vrms Fixed at 0 dBFS DAC MODE, 0-2.25Vrms Adjustable at 0 dBFS PRE MODE
  • Power Voltage : 230V position is fit for AC220V-240V 50/60Hz, 115V position is fit for AC100V-120V 50/60Hz
  • Power Consumption : <10W
  • Size: 300×218×45mm (l×w×h, including the protruding part）
  • Weight : 3.7KG
  • Accessory
    • RM2 Remote Control x 1
    • Power Cord x 1
    • USB Cable x 1


Select Color
From $450.00

Original: $1,500.00

-70%
Matrix X-Sabre Pro MQA DAC (Digital-to-Analog Converter)—

$1,500.00

$450.00

Description

Note: This product is discounted because of being part of Apos' Inventory Clearance drive and is final sale.

The Matrix X-Sabre Pro MQA DAC was created by Matrix to be a MQA full decoder DAC that can fully decode the original MQA files without any assistance from the third party player software (MQA Core Decode). This lets you experience the music details as the artists' recording room.


The X-Sabre Pro MQA DAC uses the ES9038PRO advanced 8-channel D/A chip. Its inner DSP unit and artificial circuit have high performance and better user experience. The new generation XMOS XU216 USB asynchronous transfer interface and new AK4118 S/PDIF receiver chip, with powerful computing performance and multi-channel processing performance, make X-Sabre Pro MQA has excellent digital audio conversion capability.

In addition optical, coaxial, AES/EBU, and USB ports, the X-Sabre Pro MQA DAC also has a IIS LVDS input via a HDMI connector to differential transmit IIS signal. It has a clock configuration circuit unit, which can choose to use ES9038PRO synchronous clock source or external ultra-low phase noise clock source. Finally, it has a built-in three hi-res audio dedicated Crystek ultra-low phase noise oscillators that result in a phase noise as low as -169 dBc/Hz.

Specs:

  • AES Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD DSD64 (DoP/dCS)
  • Coaxial Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD DSD64 (DoP/dCS)
  • Optical Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD DSD64 (DoP/dCS)
  • IISPS AUDIO Standard) Input
    • PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
    • DSD DSD64/128/256 (DoP/dCS) DSD64/128/256/512/1024(Native DSD)
  • USB Input
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
    • MQA 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz MQA Studio or MQA stream
    • DSD DSD64/128/256 (DoP/dCS) DSD64/128/256/512 (ASIO Native)
  • System Support
    • Windows7/8/8.1/10 systems need to install the supplied drivers.
    • Mac OS X10.6.4 and above version without installing drivers.
    • Most Android devices can be connected via OTG cable.
    • The iOS devices can be used via the Apple Camera Connection Kit.
  • XLR Output
    • SNR : > -134dB 20Hz-20kHz A-Weighting
    • THD+N : <0.00012% at 1kHz A-Weighting, <0.00015% at 20Hz-20kHz A-Weighting
    • Frequency Response : 20Hz-20kHz (+0.01dB/-0.02dB)
    • Crosstalk : > -151dB @1kHz
    •  4.5Vrms Fixed at 0 dBFS DAC MODE, 0-4.5Vrms Adjustable at 0 dBFS PRE MODE
  • RCA Output
    • SNR : >-129dB 20Hz-20kHz A-Weighting
    • THD+N : <0.00018% at 1kHz A-Weighting, <0.00030% at 20Hz-20kHz A-Weighting
    • Frequency Response : 20Hz-20kHz (+0.01dB/-0.02dB)
    • Crosstalk : >-143dB @1kHz
    • 2.25Vrms Fixed at 0 dBFS DAC MODE, 0-2.25Vrms Adjustable at 0 dBFS PRE MODE
  • Power Voltage : 230V position is fit for AC220V-240V 50/60Hz, 115V position is fit for AC100V-120V 50/60Hz
  • Power Consumption : <10W
  • Size: 300×218×45mm (l×w×h, including the protruding part）
  • Weight : 3.7KG
  • Accessory
    • RM2 Remote Control x 1
    • Power Cord x 1
    • USB Cable x 1
