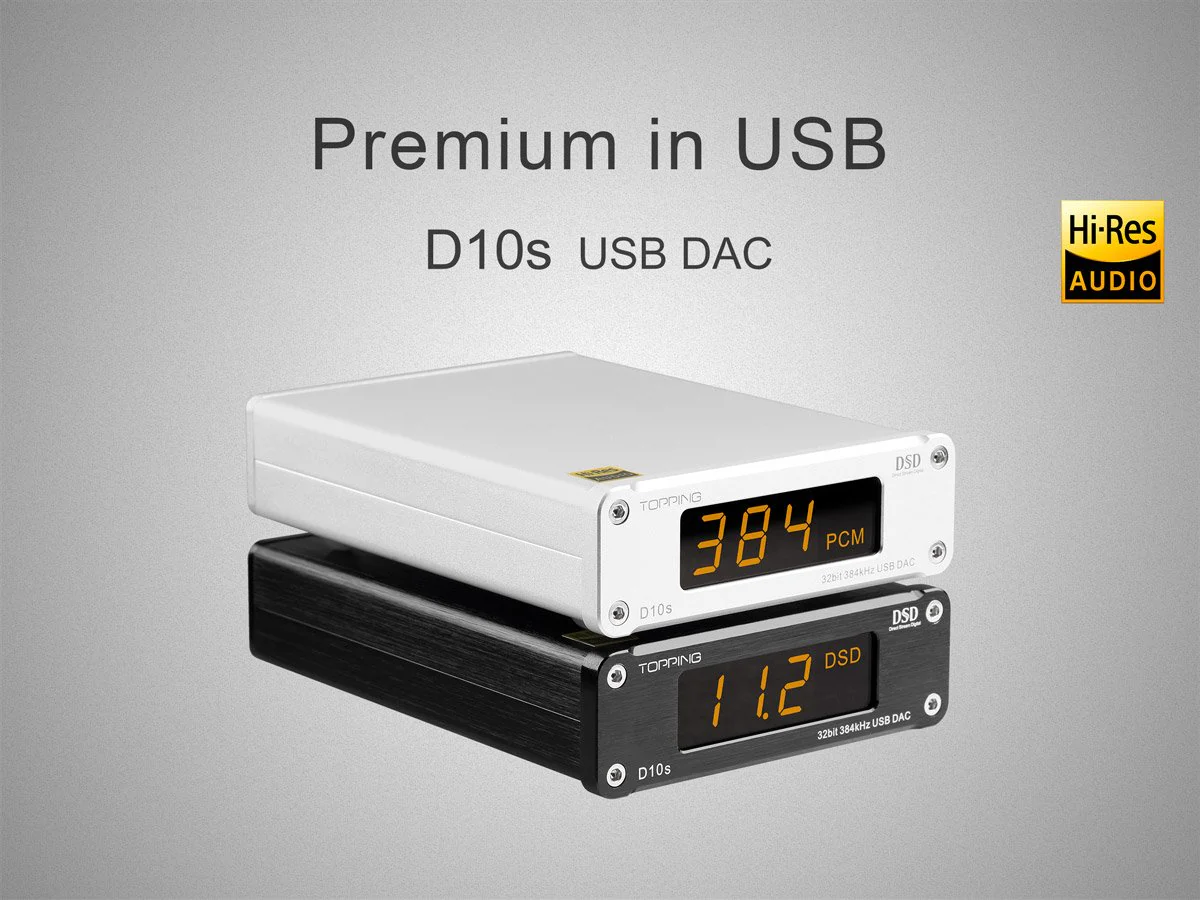

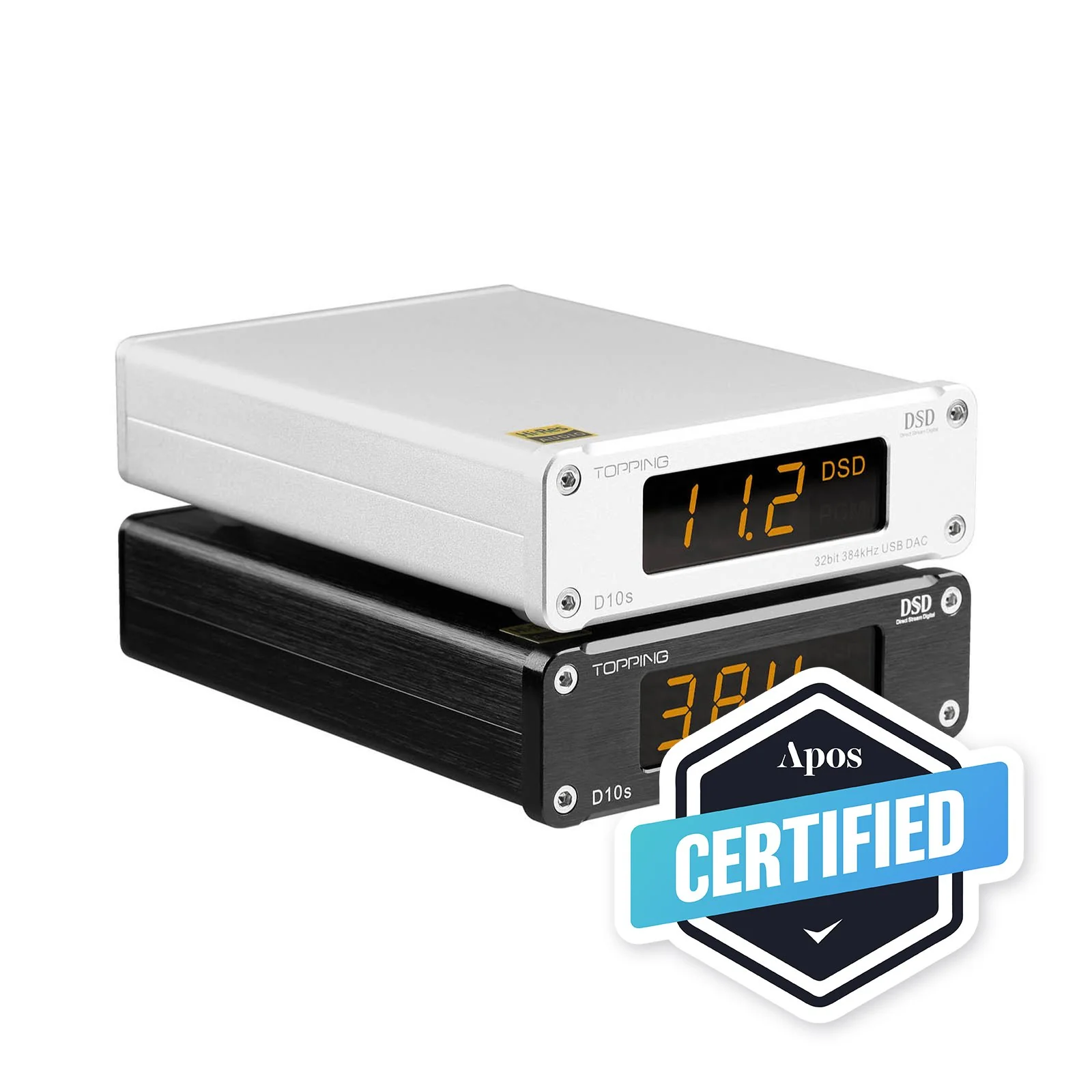

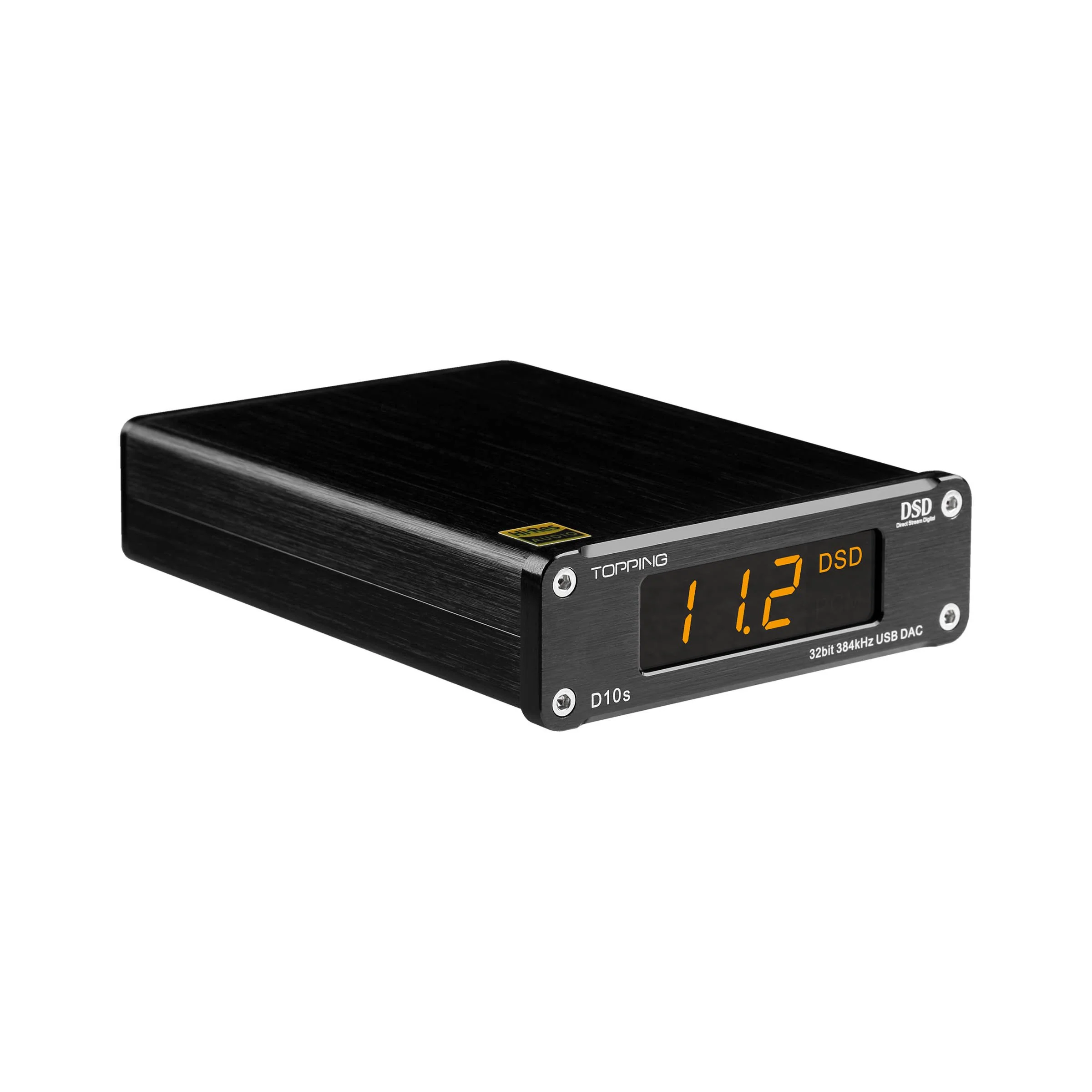

TOPPING D10s DAC (Apos Certified)
The D10s comes with an OP amp sockets that allows DIYers to tinker with the sound signature. It can drive active speakers, work with a power/headphone amp, or connect as an USB interface to another DAC.
Specs:
- Power Supply: DC 5V / 0.5A (USB Power Supply)
- Input: USB
- Digital Output: COAX, RCA, OPT
- USB IN: 44.1 kHz - 384 kHz / 16Bit - 32Bit, DSD64-DSD256 (Native), DSD128 (DOP)
- OPT/COAX OUT: 44.1 kHz - 192 kHz / 16Bit - 24Bit, DSD64 (DOP)
- Decoding Specs (Line Out / USB In @ 96 kHz)
- THD + N @1 kHz A-wt: <0.0002%
- SNR @1 kHz A-wt: 120 dB
- Dynamic Range @1 kHz A-wt: 120 dB
- Frequency Response: 20 Hz - 20 kHz (±0.1 dB), 20 Hz - 40 kHz (±0.4 dB)
- Output Level: 2Vrms @ 0 dBFS
- Noise @ A-wt: <2.5uVrms
- Channel Crosstalk @1 kHz: -135 dB
- Channel Balance: <0.02dB
- Output Impedance: 20 ohms
- Measured: 10.3 cm x 14.6 cm x 3.7 cm
- Weight: 323 g
Included:
- TOPPING D10s DAC
- USB Cable
- User Manual
- Warranty Card
